Dutch/Hollander Weave Wire Mesh

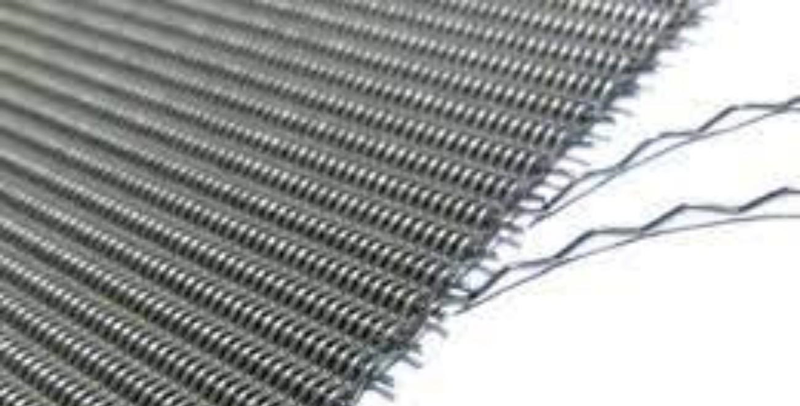

The Dutch Weave Wire Mesh, also known as Hollander Weave Wire Mesh, is a high-precision, tightly woven wire mesh designed for ultra-fine filtration applications. It features a unique weaving pattern in which warp wires (running lengthwise) are larger in diameter and spaced further apart, while weft wires (running crosswise) are smaller in diameter and closely spaced. This results in a denser mesh with reduced openings, providing exceptional filtration efficiency and mechanical strength.
Key Features:
- Material: Constructed from premium-grade stainless steel (SS 304, SS 316, SS 316L) or other high-performance alloys for corrosion resistance and durability.
- Weaving Technique: Dutch weave combines fine and coarse wires to create a tight, impenetrable mesh structure.
- High Filtration Precision: Capable of filtering extremely fine particles, making it ideal for demanding filtration tasks.
- Strength and Stability: The unique weave pattern enhances strength, ensuring reliability under high pressure.
- Versatility: Available in various specifications to meet different industrial needs.
Applications:
- Industrial Filtration: Used in chemical, pharmaceutical, and oil & gas industries for fine and precise filtration of liquids and gases.
- Screening and Sieving: Effective in sieving very fine powders and particles in food processing, metallurgy, and electronics.
- Pressure and Vacuum Filtration: Common in filter presses and vacuum filtration systems.
- Aerospace and Marine: Ideal for high-performance filtration in aerospace and marine environments.
Specifications:
- Material Grades: SS 304, SS 316, SS 316L, Hastelloy, Monel, Inconel, or customized materials.
- Wire Diameter: Warp wires: 0.1 mm to 2 mm; Weft wires: 0.05 mm to 1 mm.
- Mesh Opening: Available in ultra-fine sizes ranging from 5 microns to 200 microns.
- Width and Length: Customizable rolls or cut-to-size panels to fit specific applications.
- Surface Finish: Polished or matte, depending on requirements.
Advantages:
- Extremely precise filtration for fine particles.
- High mechanical strength and stability under pressure or tension.
- Excellent resistance to corrosion, chemicals, and high temperatures.
- Durable and long-lasting, even in challenging environments.
Packaging:
- The mesh is securely rolled and packed in moisture-resistant and durable materials to prevent damage during transportation. Custom packaging options are available upon request.
